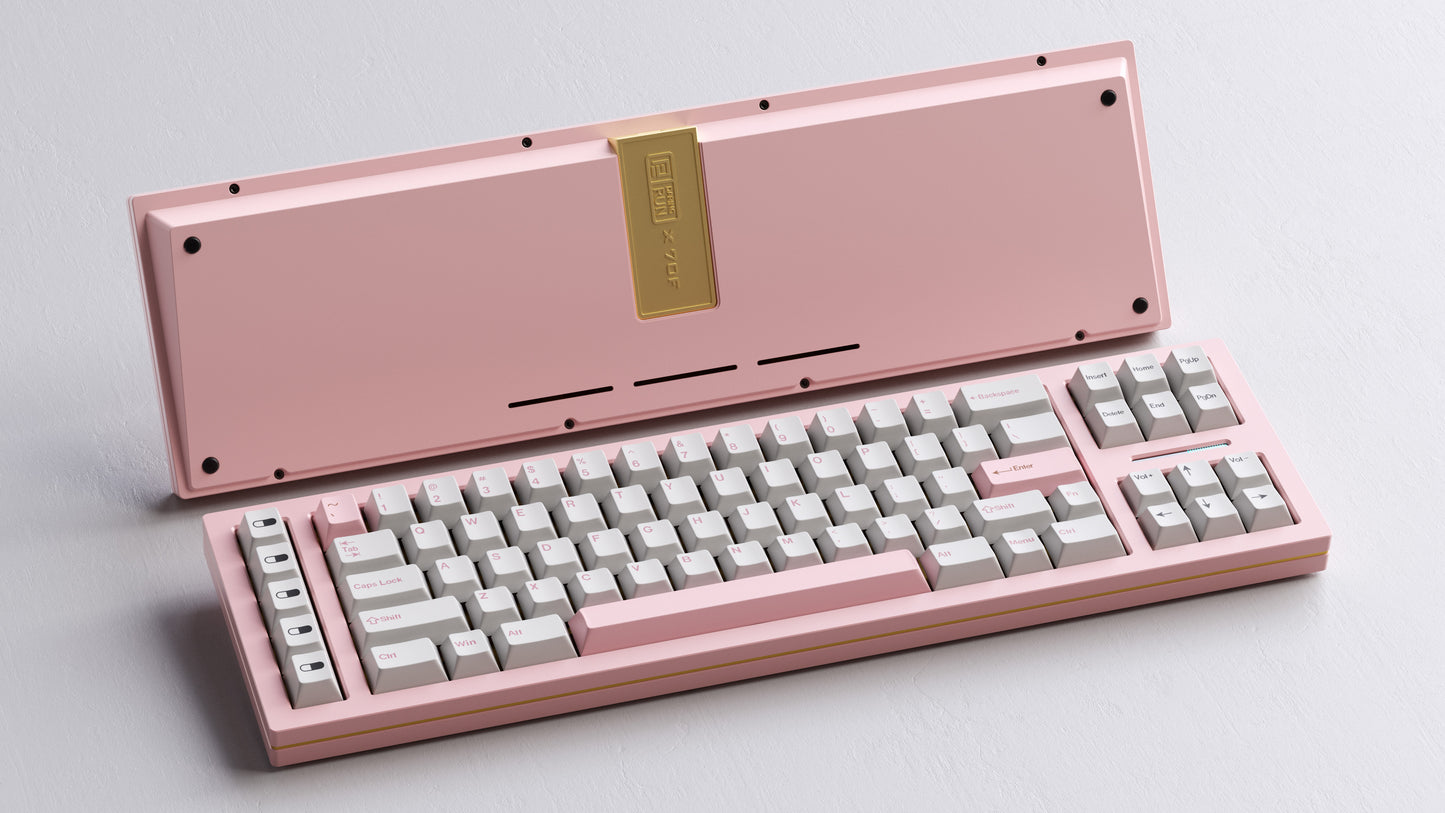

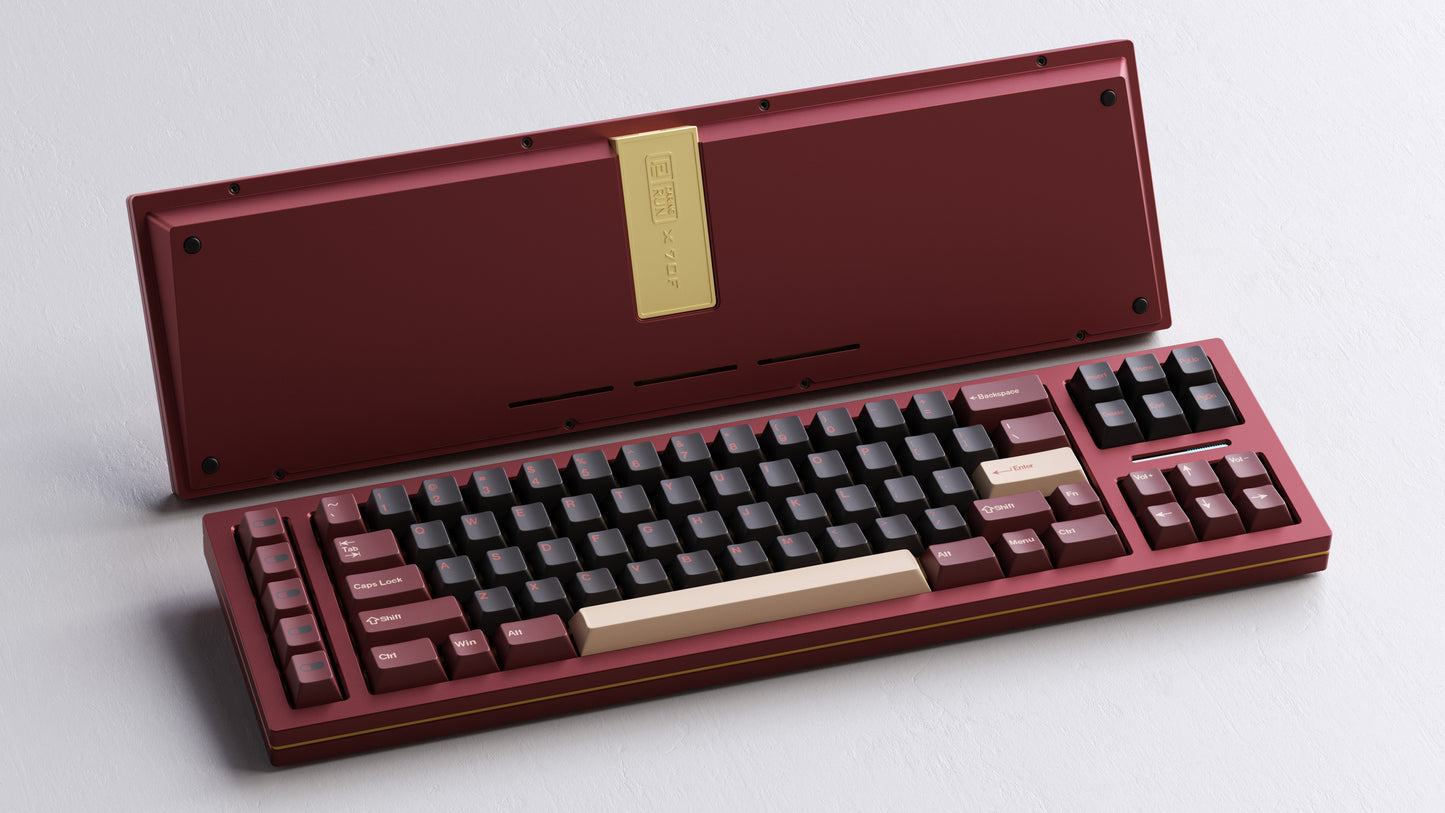

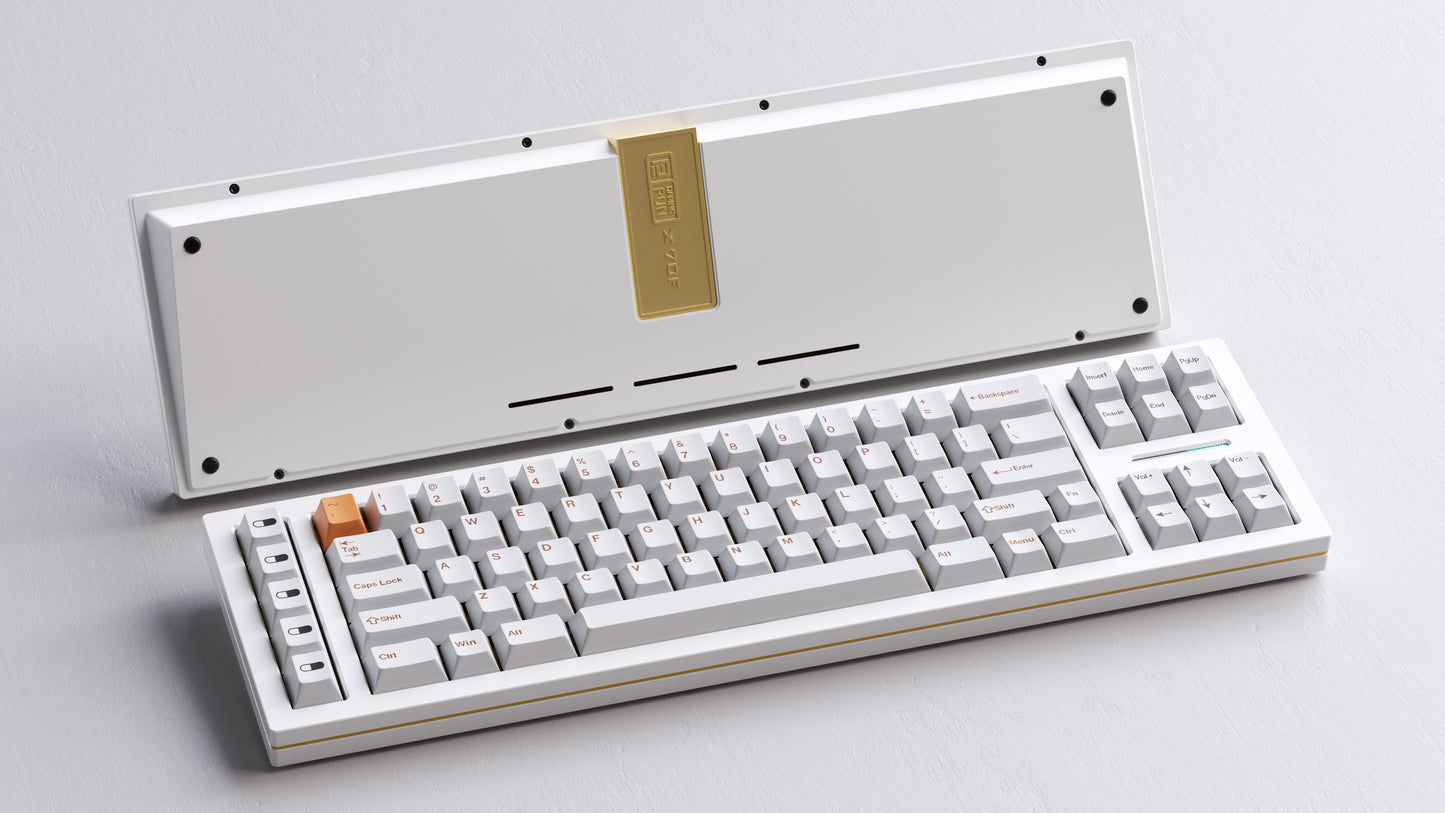

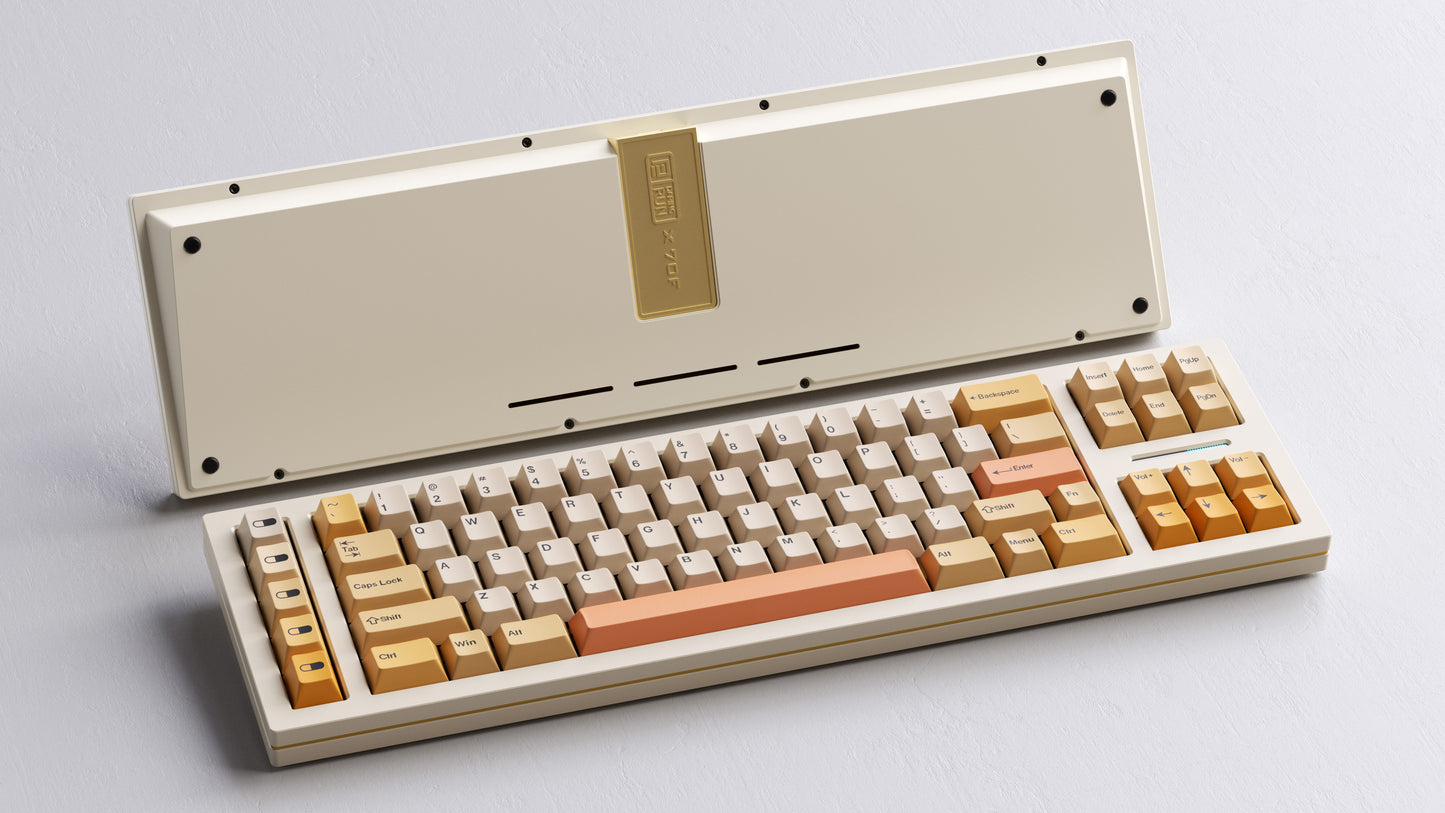

【Group Buy Sale】DR-70F

【Group Buy Sale】DR-70F

Regular price $139.00 USD
Regular price Sale price $139.00 USD
Sale Sold out
Shipping calculated at checkout.

Price:Wired$139,Bluetooth $159

Group Buy Date: 1st Feb to 1st March 2024

No quantity limited, pls make payment on our vendor list.

Group Buy Shipping: 3-6 months.

Check extra part here

View full details



  • Size:401.9X116.2X32.4mm
  • Typing angle:
  • Material: 6063alu
  • Split main area,arrow area,function area
  • Layout:70%+5%, arrow area and function area can be rotated and switched,one keyboard two layouts
  • Structure:PCB gasket mount,Sandwich mount
  • Gasket mount plate: 1.5mm,PC,three split parts.
  • Sandwich mount plate:1.5mm Alu,anodised gold
  • PCB: 1.6mm, bluetooth pcb include 6400mah battery.
  • Polling rate:1000hz in wired mode,800hz in bluetooth mode.
  • Bluetooth PCB Latency Rate:1.25ms
  • Programming Support: wired in VIAL, bluetooth pcb in LDN.

Package include

1*Top case

1*Bottom case

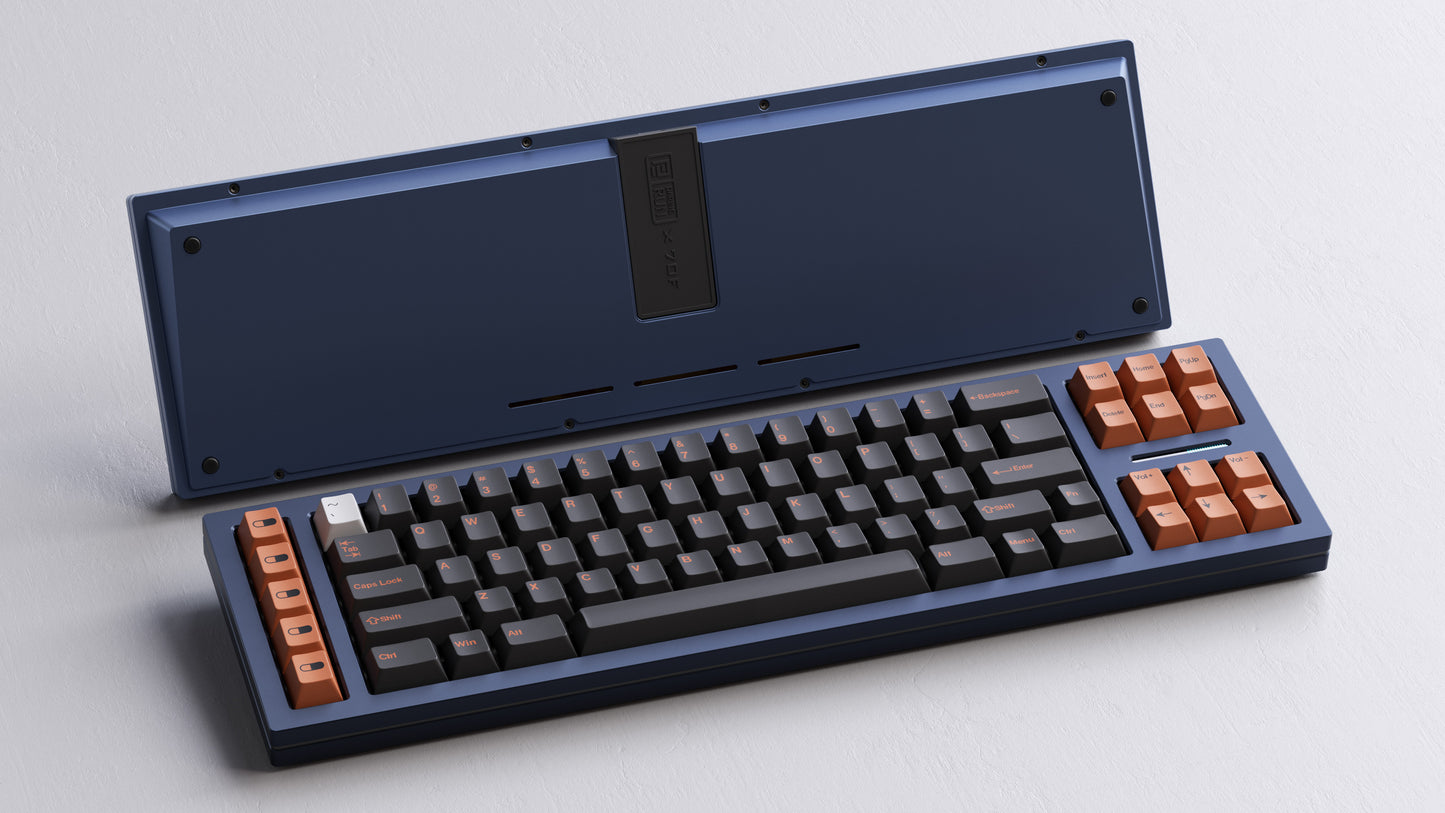

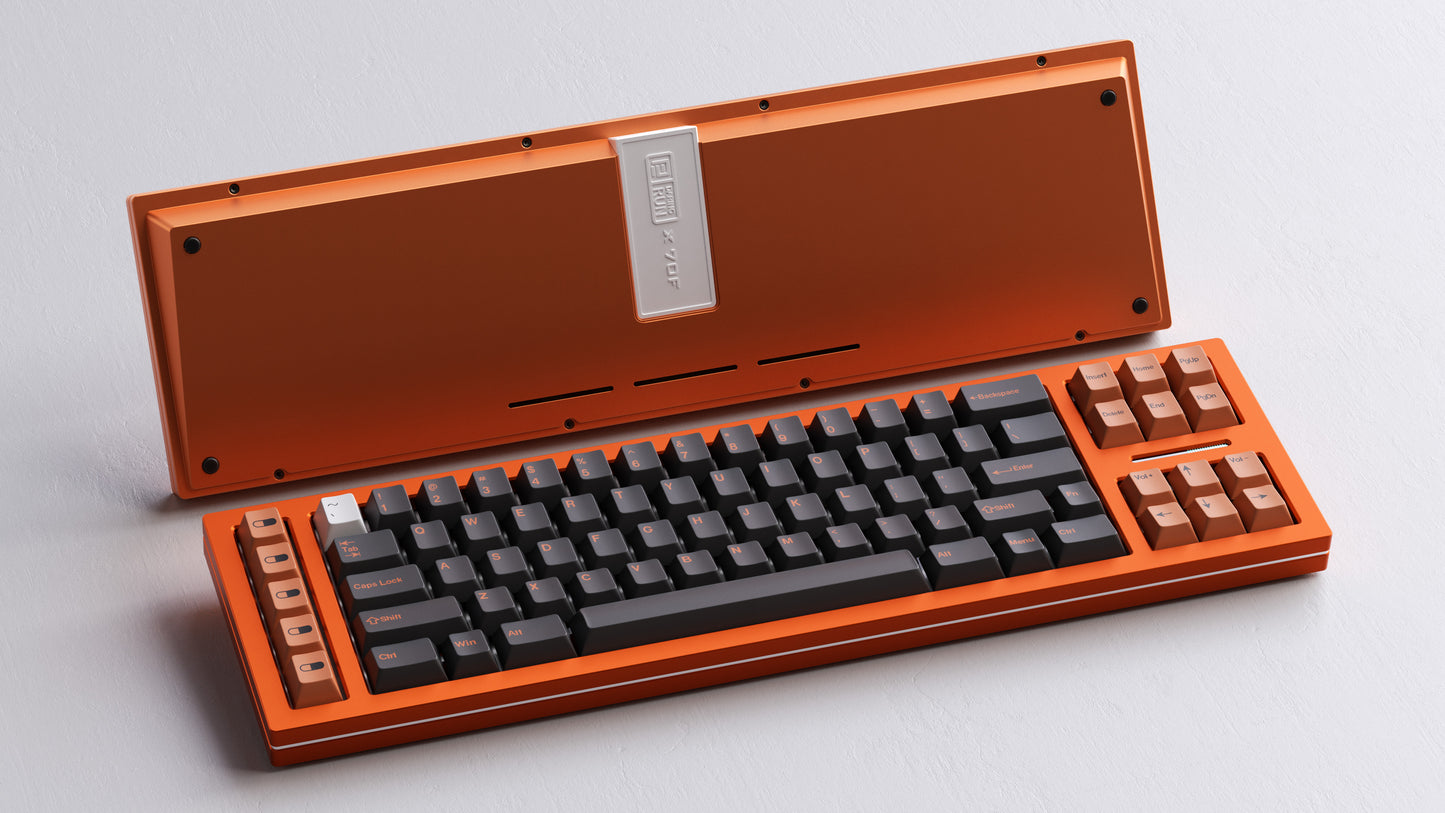

1*Middle frame(Ano blue keyboard with black color middlle frame, Orange keyboard with silver middlle frame)

1*Weight(Ano blue keyboard with black PVD weight, Orange keyboard with silver pvd weight)

1*Pc led strip

1*Mirror piece

1*PCB (bluetooth pcb with 6400mah battery installed in the battery slot)

2*Type-c daughterboard

1* Pc plate for gasket mount

1*Foam kit

1*Accessories bag

1*User guide

Note: It does not include stabilizers,switches or keycaps. You need to buy 4pcs 2u, 1pcs 6.25U or 7U screw in stabilizers 1.6mm.

Build and user guide

  • Two layouts.Split design,arrow area and function area can be rotated and switched.

  • PCB gasket mount and sandwich mount,adjust the sound and type feeling you like at any time.

  • Bluetooth PCB 5.2 include 6400mah battery,can connect 8 devices and one key switch. High speed bluetooth connect and long battery life.

  • Capslock LED indicators. The light can be adjusted or turned off.
  • Split pcb and plate,consistent type feeling.

    Convenient to change two layouts

    4 pieces embedded silicone parts,easy to makes top case locate the limit, no worry about repeating move top case to find the hole position.

    2mm space from hot-swap sockets to bottom. The interior space is more compact, reduce cavity sound.


Only need to change the direction of switches then can build the layout you want.

Soldered PCB

Soldered PCB support split spacebar.

Sandwich mount

A whole plate connected to the top case and the bottom case at the same time,brings unique typing feel.

PCB gasket mount

Silicone gasket fixed on the pcb,brings soft typing feel.
