【Instock Sale】DR-70F
【Instock Sale】DR-70F
Couldn't load pickup availability
Instock shipping: 3 working days by DHL or Fedex after paid. It usually take 3-7days to arrive after ship. Ships to worldwide.
Check instock extra part here
Share
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/107.jpg?v=1704271251&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/104_3805feec-9c74-45ec-88a5-55f1ebe6544f.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/110_e50c768d-3f3f-44f9-92b6-e01bce61a518.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/105_211acc13-88d9-410b-b58a-6363f9499636.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/111_e0d95f2b-504c-4cb1-ab71-3c0cc107bdc4.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/112_bcfff6bd-e3fd-4625-af79-28891761fed6.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/106_bbae8b65-4c6d-4d7a-a311-2078cc454950.jpg?v=1714975086&width=1445)
![【Instock Sale】DR-70F](http://d-r.works/cdn/shop/files/109_e86f5547-dfc4-4891-990d-9ce9fd749644.jpg?v=1714975086&width=1445)

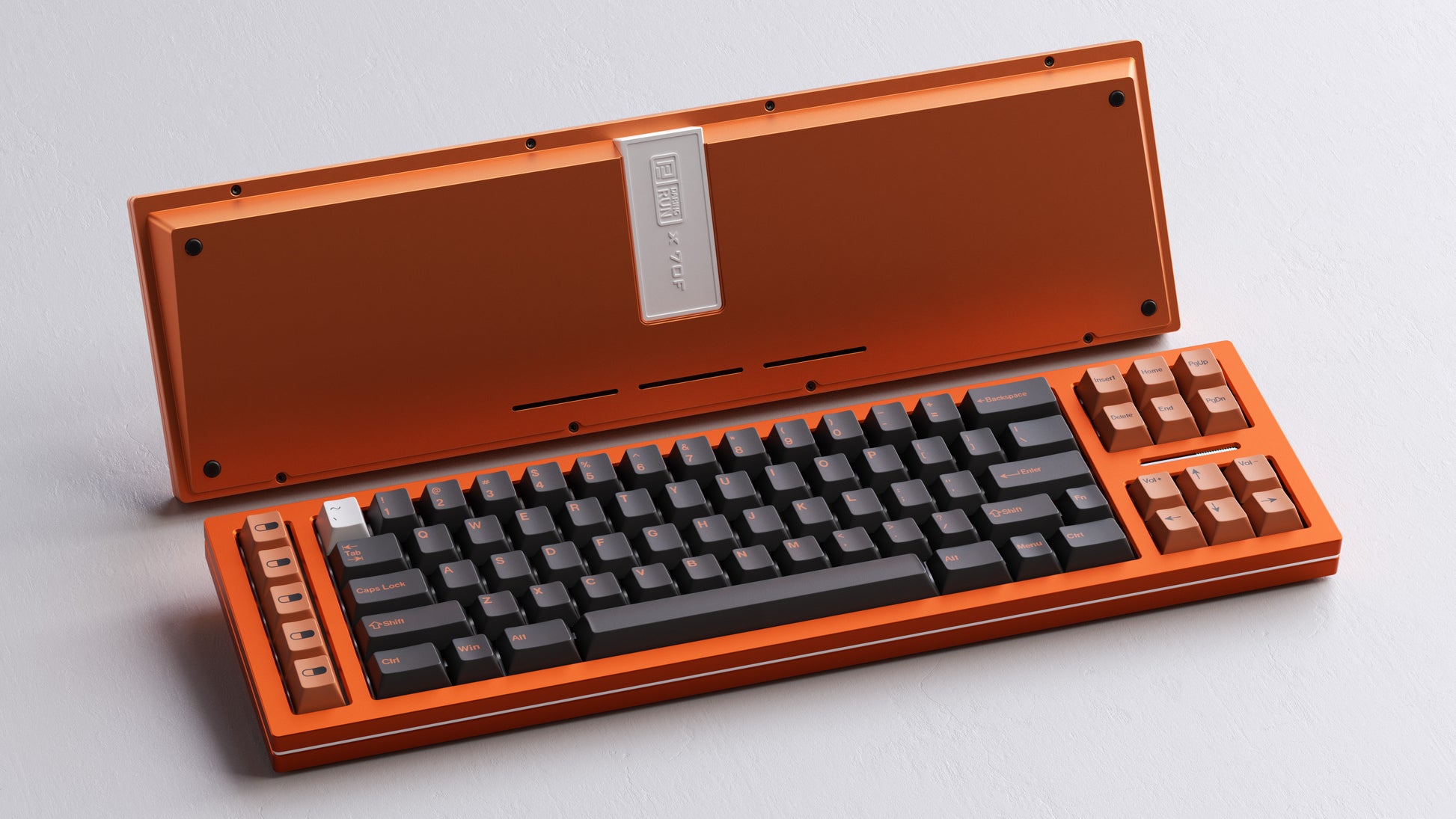

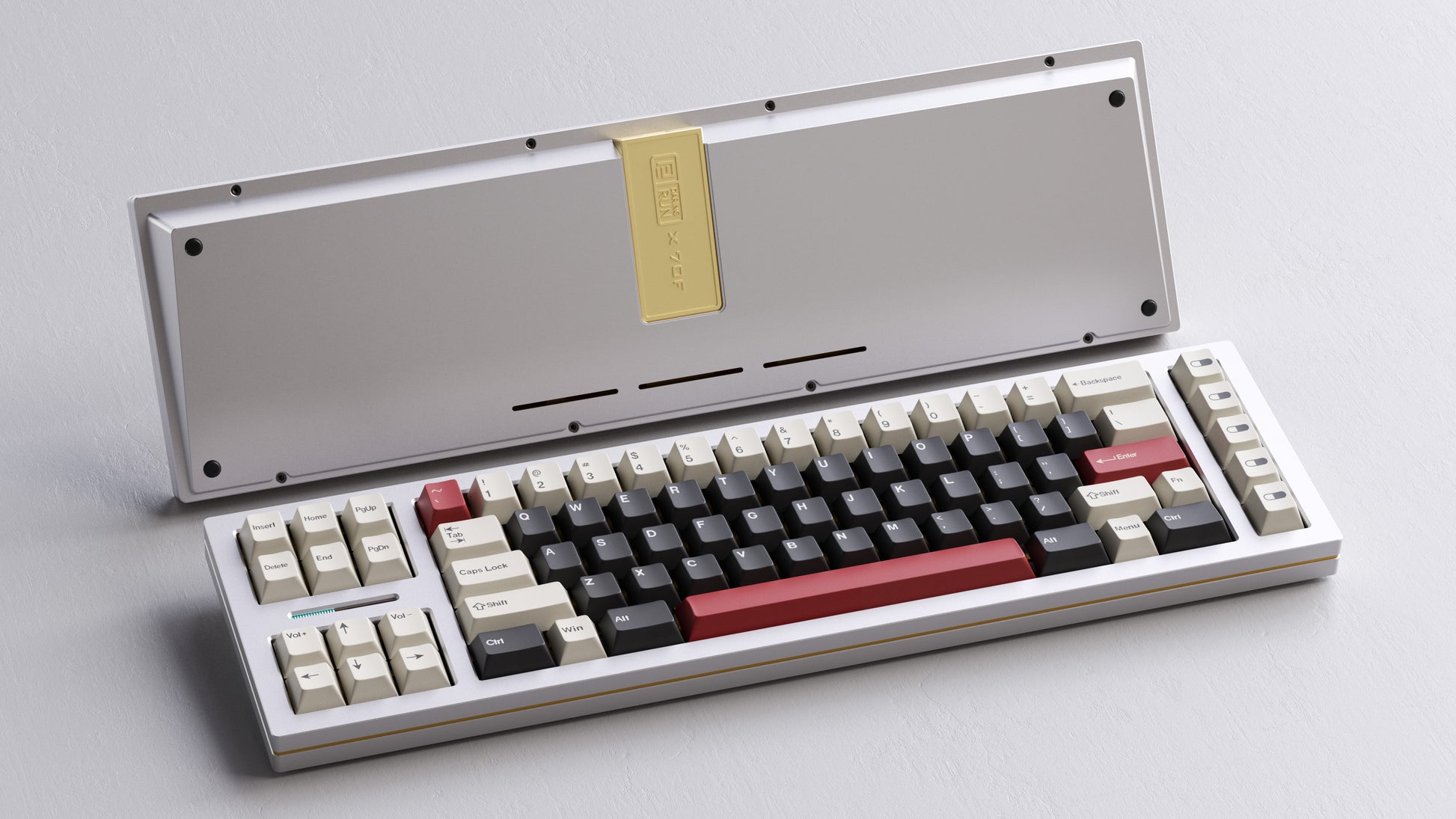

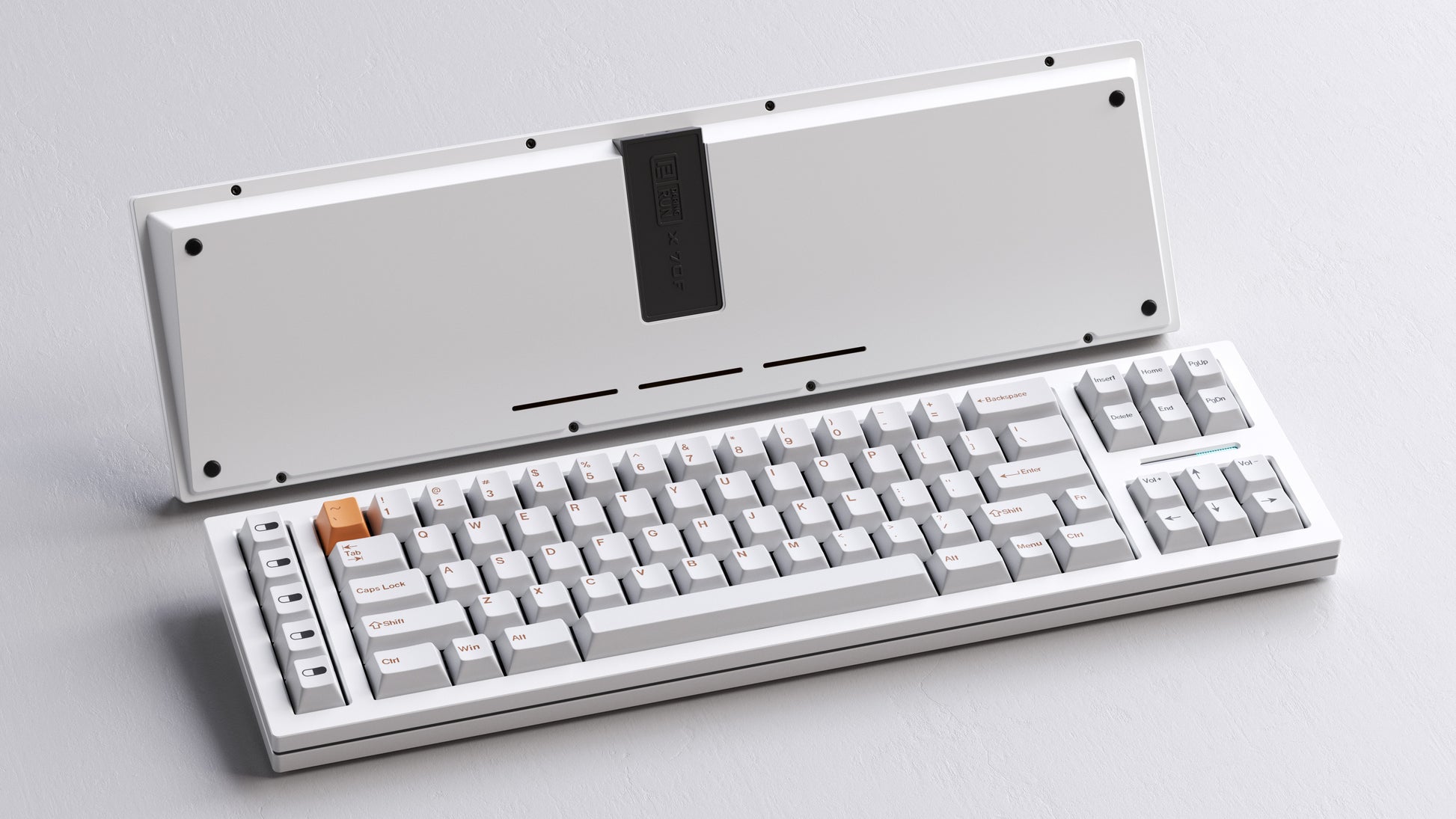

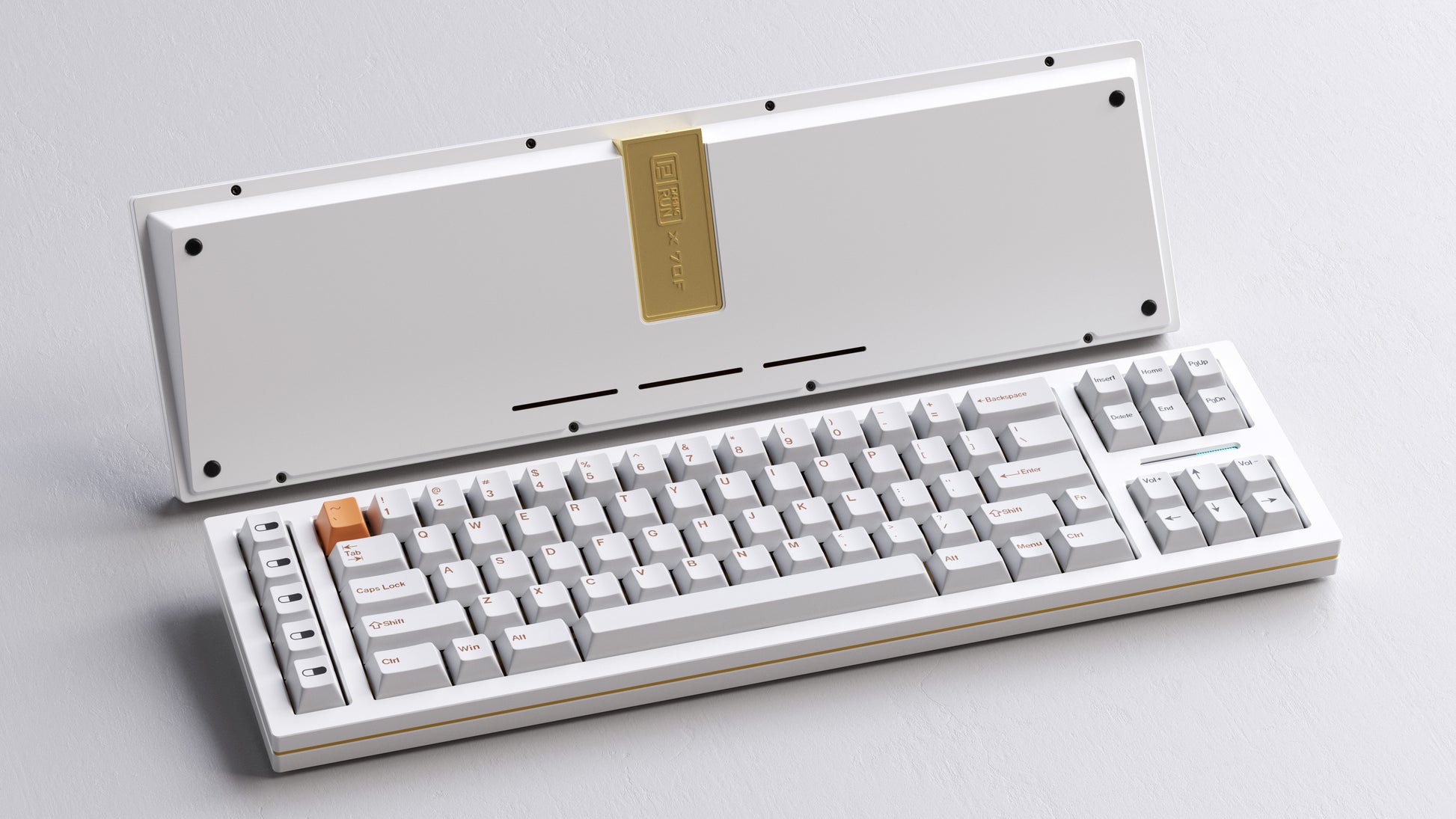

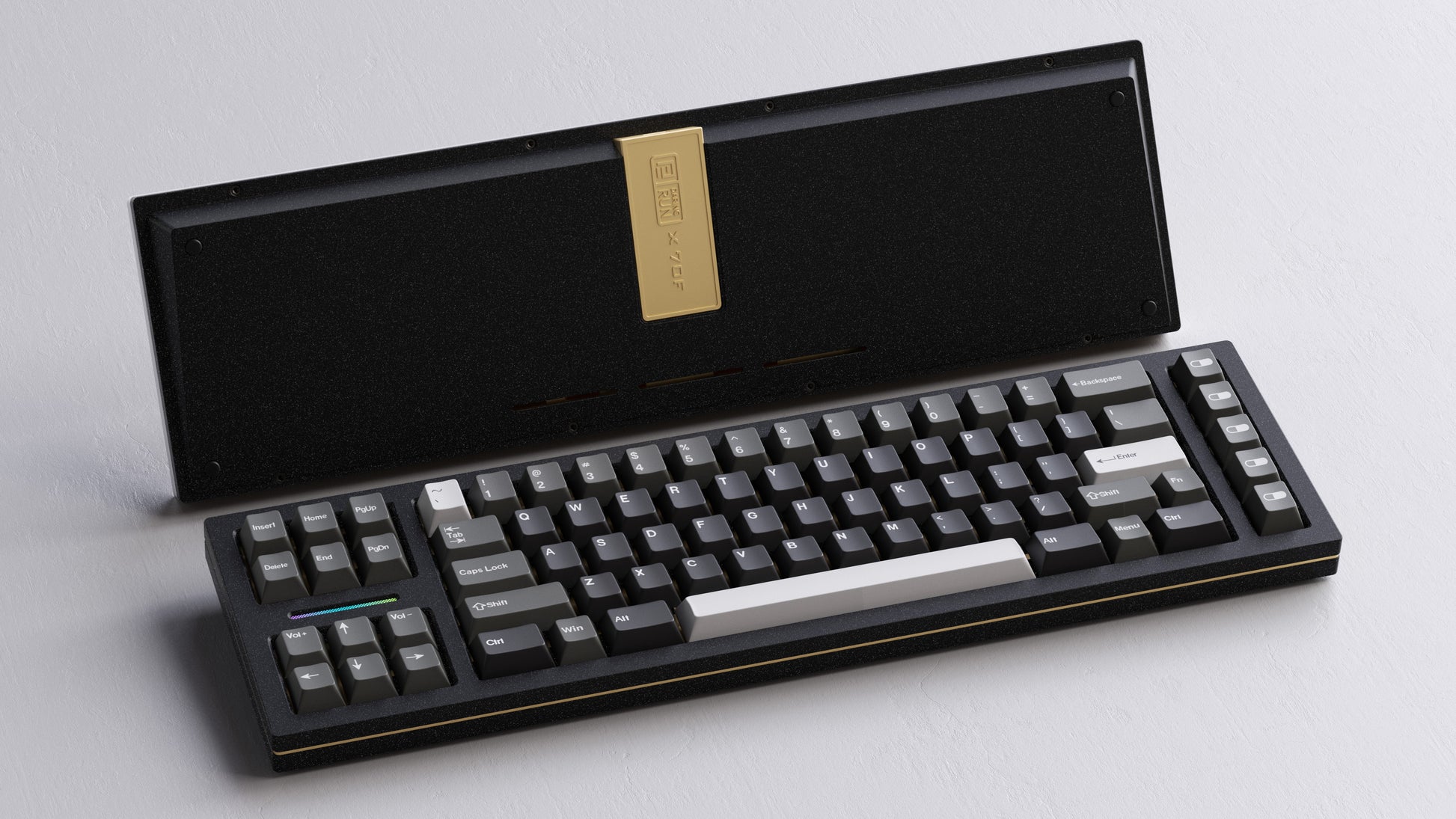

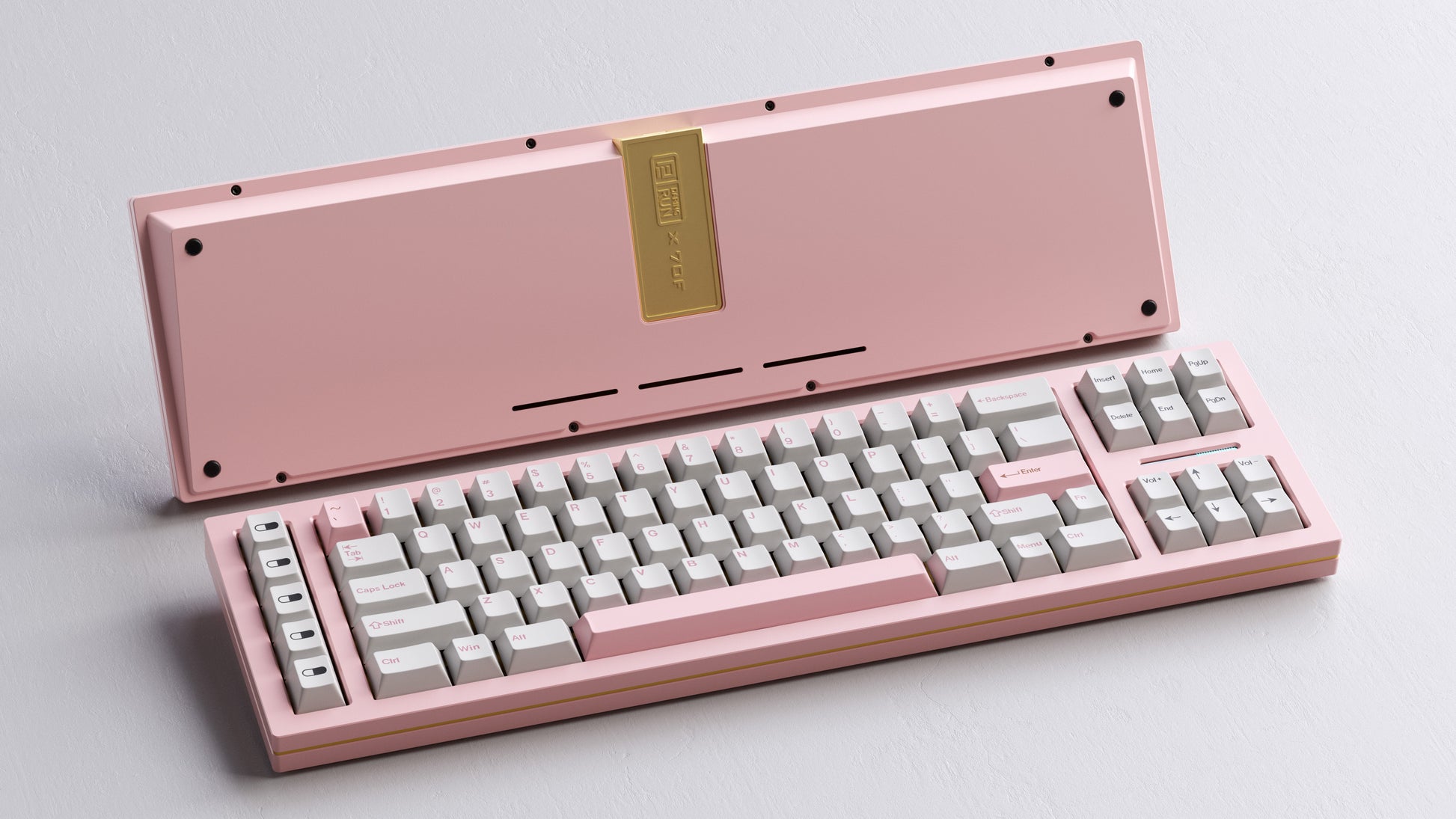

DARING RUN 70F
![](http://d-r.works/cdn/shop/files/70F_banner.png?v=1702014171&width=3200)
Specification
- Size:401.9X116.2X32.4mm
- Typing angle: 7°
- Material: 6063alu
- Split main area,arrow area,function area
- Layout:70%+5%, arrow area and function area can be rotated and switched,one keyboard two layouts
- Structure:PCB gasket mount,Sandwich mount
- Gasket mount plate: 1.5mm,PC,three split parts.
- Sandwich mount plate:1.5mm Alu,anodised gold
- PCB: 1.6mm, bluetooth pcb include 6400mah battery.
- Polling rate:1000hz in wired mode,800hz in bluetooth mode.
- Bluetooth PCB Latency Rate:1.25ms
- Programming Support: wired in VIAL, bluetooth pcb in LDN.

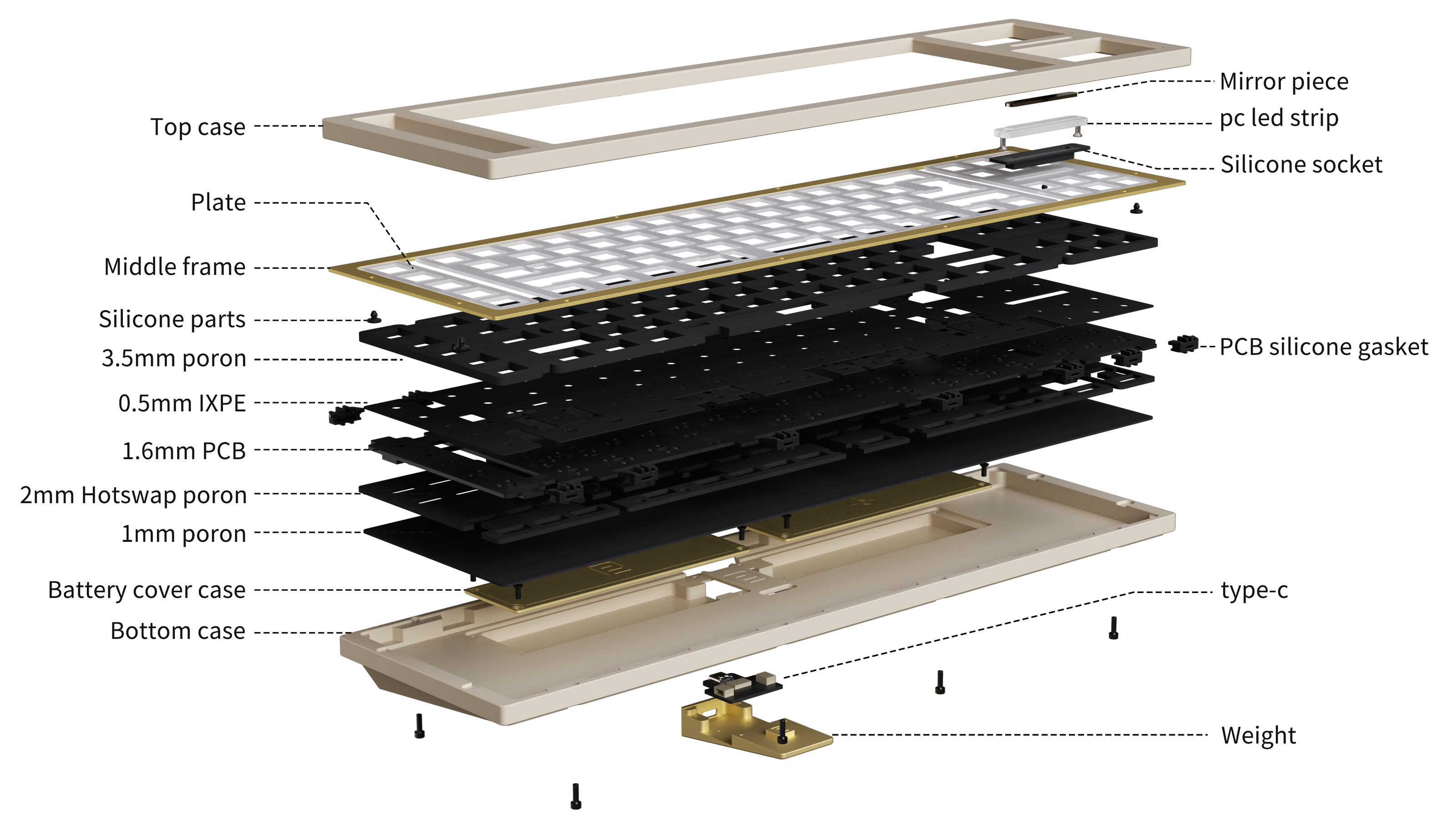

Package include
1*Top case
1*Bottom case
1*Middle frame
1*Weight
1*Pc led strip
1*Mirror piece
1*PCB(bluetooth pcb with 6400mah battery installed in the battery slot)
2*Type-c daughterboard
1* Pc plate for gasket mount
1*Foam kit
1*Accessories bag
1*User guide
Note: It does not include stabilizers,switches or keycaps. You need to buy 4pcs 2u, 1pcs 6.25U or 7U screw in stabilizers 1.6mm.
Build and user guide
![](http://d-r.works/cdn/shop/files/89.jpg?v=1702281023&width=1500)

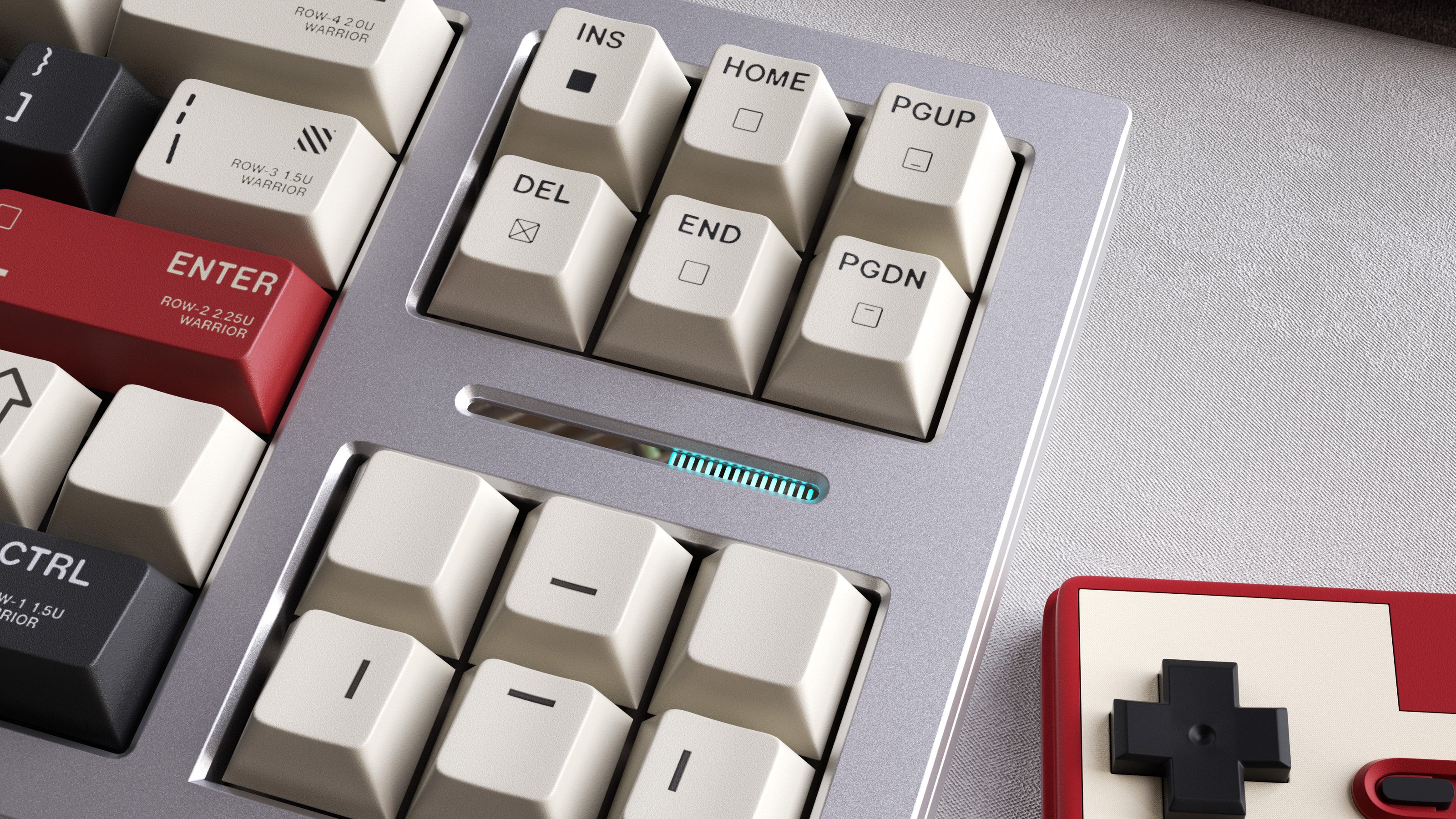

- Two layouts.Split design,arrow area and function area can be rotated and switched.
- PCB gasket mount and sandwich mount,adjust the sound and type feeling you like at any time.
- Bluetooth PCB 5.2 include 6400mah battery,can connect 8 devices and one key switch. High speed bluetooth connect and long battery life.
- Capslock LED indicators. The light can be adjusted or turned off.
-
Split pcb and plate,consistent type feeling.

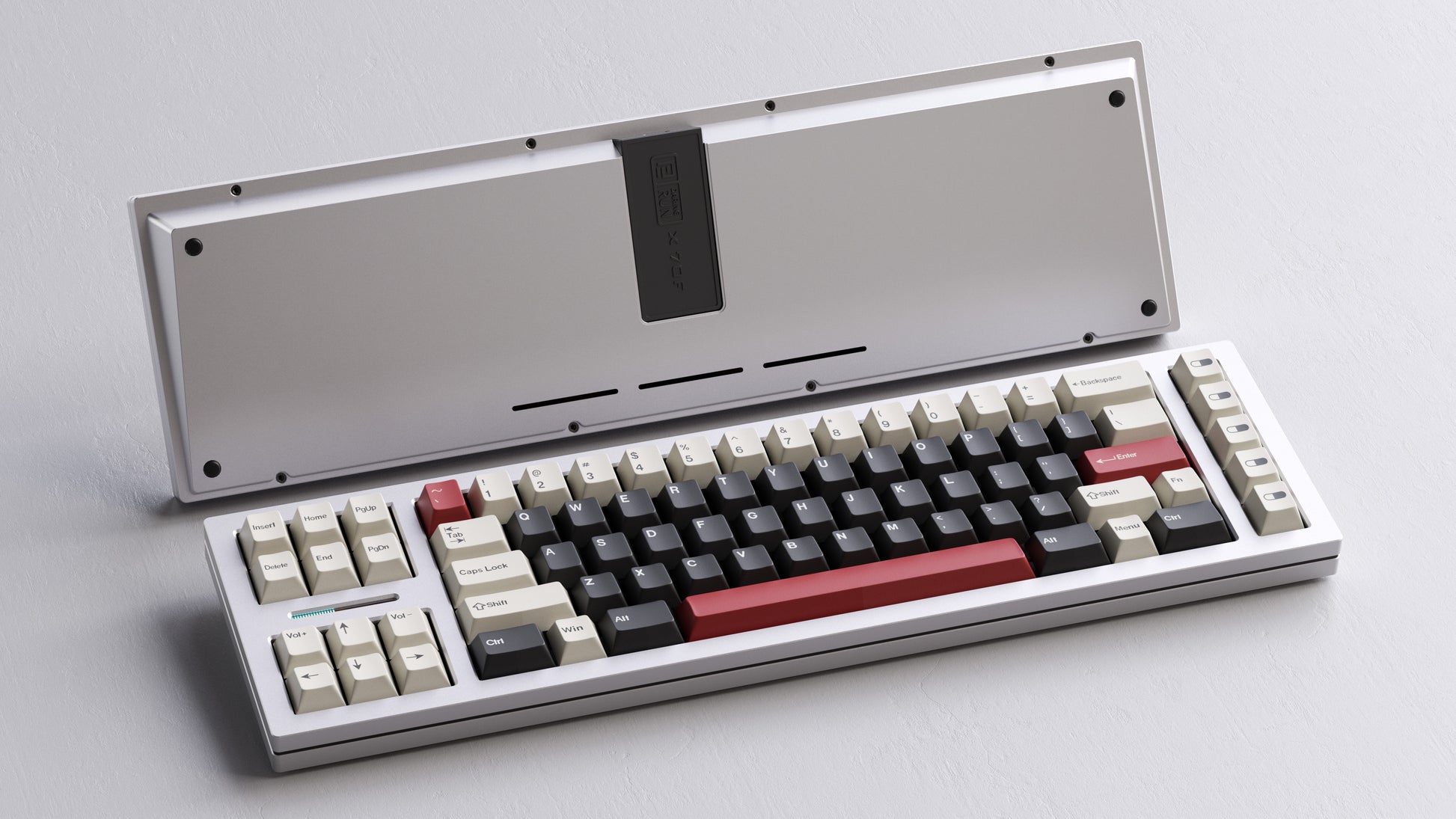

Convenient to change two layouts
4 pieces embedded silicone parts,easy to makes top case locate the limit, no worry about repeating move top case to find the hole position.

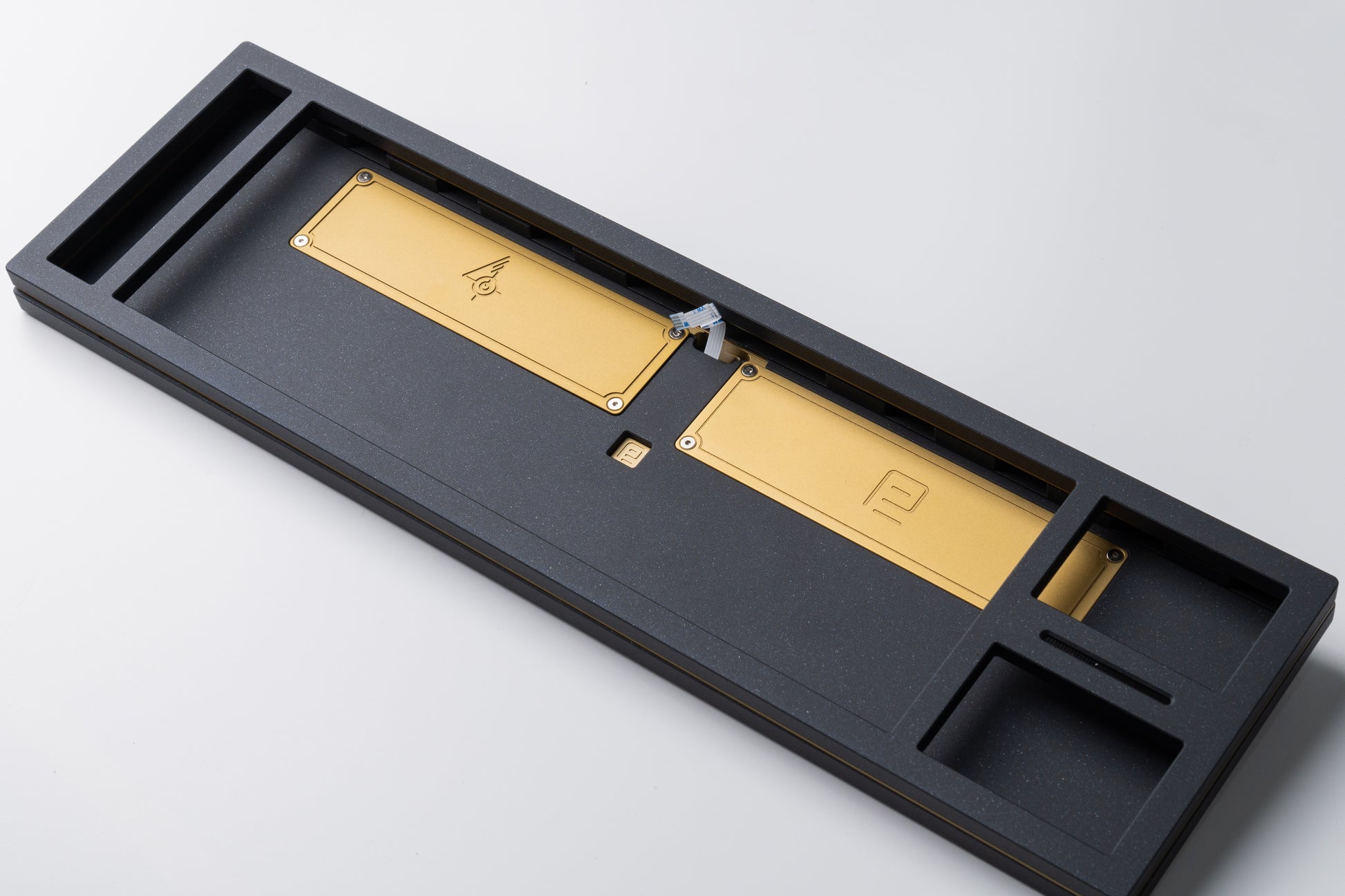

2mm space from hot-swap sockets to bottom. The interior space is more compact, reduce cavity sound.
-
![](http://d-r.works/cdn/shop/files/001_8a2955e2-f9d1-403f-a694-d949de155439.png?v=1702369425&width=1500)
ANSI&ISO Layout
Only need to change the direction of switches then can build the layout you want.
![](http://d-r.works/cdn/shop/files/102.jpg?v=1702890955&width=1500)
Sandwich mount
A whole plate connected to the top case and the bottom case at the same time,brings unique typing feel.
![](http://d-r.works/cdn/shop/files/103_1.jpg?v=1702890911&width=1500)
PCB gasket mount
Silicone gasket fixed on the pcb,brings soft typing feel.
